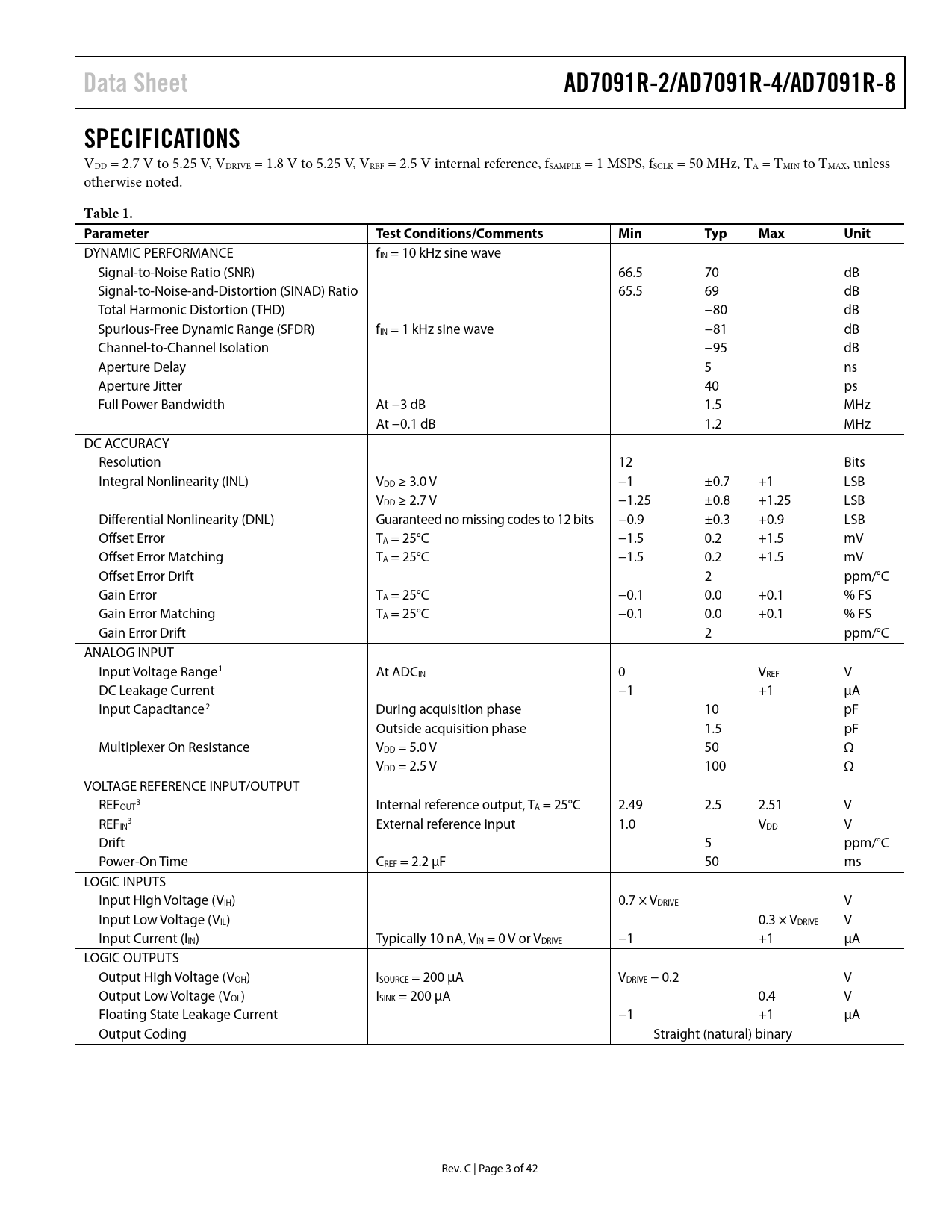

Data Sheet AD7091R-2/AD7091R-4/AD7091R-8 SPECIFICATIONS
VDD = 2.7 V to 5.25 V, VDRIVE = 1.8 V to 5.25 V, VREF = 2.5 V internal reference, fSAMPLE = 1 MSPS, fSCLK = 50 MHz, TA = TMIN to TMAX, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE fIN = 10 kHz sine wave Signal-to-Noise Ratio (SNR) 66.5 70 dB Signal-to-Noise-and-Distortion (SINAD) Ratio 65.5 69 dB Total Harmonic Distortion (THD) −80 dB Spurious-Free Dynamic Range (SFDR) fIN = 1 kHz sine wave −81 dB Channel-to-Channel Isolation −95 dB Aperture Delay 5 ns Aperture Jitter 40 ps Full Power Bandwidth At −3 dB 1.5 MHz At −0.1 dB 1.2 MHz DC ACCURACY Resolution 12 Bits Integral Nonlinearity (INL) VDD ≥ 3.0 V −1 ±0.7 +1 LSB VDD ≥ 2.7 V −1.25 ±0.8 +1.25 LSB Differential Nonlinearity (DNL) Guaranteed no missing codes to 12 bits −0.9 ±0.3 +0.9 LSB Offset Error TA = 25°C −1.5 0.2 +1.5 mV Offset Error Matching TA = 25°C −1.5 0.2 +1.5 mV Offset Error Drift 2 ppm/°C Gain Error TA = 25°C −0.1 0.0 +0.1 % FS Gain Error Matching TA = 25°C −0.1 0.0 +0.1 % FS Gain Error Drift 2 ppm/°C ANALOG INPUT Input Voltage Range1 At ADCIN 0 VREF V DC Leakage Current −1 +1 µA Input Capacitance2 During acquisition phase 10 pF Outside acquisition phase 1.5 pF Multiplexer On Resistance VDD = 5.0 V 50 Ω VDD = 2.5 V 100 Ω VOLTAGE REFERENCE INPUT/OUTPUT REF 3 OUT Internal reference output, TA = 25°C 2.49 2.5 2.51 V REF 3 IN External reference input 1.0 VDD V Drift 5 ppm/°C Power-On Time CREF = 2.2 µF 50 ms LOGIC INPUTS Input High Voltage (VIH) 0.7 × VDRIVE V Input Low Voltage (VIL) 0.3 × VDRIVE V Input Current (IIN) Typically 10 nA, VIN = 0 V or VDRIVE −1 +1 µA LOGIC OUTPUTS Output High Voltage (VOH) ISOURCE = 200 µA VDRIVE − 0.2 V Output Low Voltage (VOL) ISINK = 200 µA 0.4 V Floating State Leakage Current −1 +1 µA Output Coding Straight (natural) binary Rev. C | Page 3 of 42 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagram ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION ADC TRANSFER FUNCTION REFERENCE POWER SUPPLY DEVICE RESET TYPICAL CONNECTION DIAGRAM ANALOG INPUT DRIVER AMPLIFIER CHOICE REGISTERS ADDRESSING REGISTERS CONVERSION RESULT REGISTER CHANNEL REGISTER CONFIGURATION REGISTER ALERT INDICATION REGISTER CHANNEL x LOW LIMIT REGISTER CHANNEL x HIGH LIMIT REGISTER CHANNEL x HYSTERESIS REGISTER SERIAL PORT INTERFACE READING CONVERSION RESULT WRITING DATA TO THE REGISTERS READING DATA FROM THE REGISTERS POWER-ON DEVICE INITIALIZATION MODES OF OPERATION NORMAL MODE POWER-DOWN MODE ALERT (AD7091R-4 AND AD7091R-8 ONLY) BUSY (AD7091R-4 AND AD7091R-8 ONLY) CHANNEL SEQUENCER DAISY CHAIN OUTLINE DIMENSIONS ORDERING GUIDE
