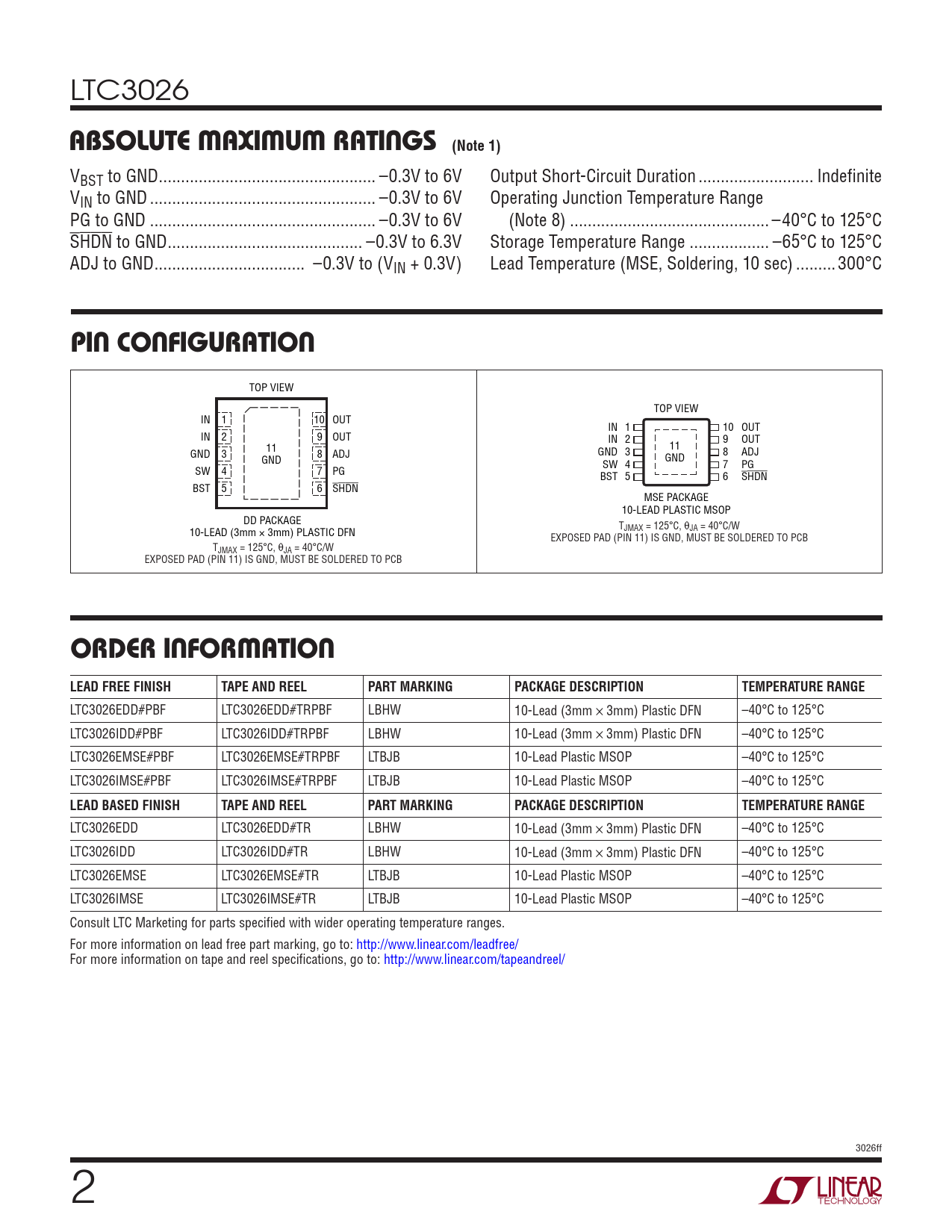

LTC3026
absoluTe MaxiMuM raTings (Note 1)
VBST to GND ... –0.3V to 6V Output Short-Circuit Duration .. Indefinite VIN to GND ... –0.3V to 6V Operating Junction Temperature Range PG to GND ... –0.3V to 6V (Note 8) ... –40°C to 125°C SHDN to GND .. –0.3V to 6.3V Storage Temperature Range .. –65°C to 125°C ADJ to GND .. –0.3V to (VIN + 0.3V) Lead Temperature (MSE, Soldering, 10 sec) ...300°C
pin conFiguraTion
TOP VIEW TOP VIEW IN 1 10 OUT IN 1 10 OUT IN 2 9 OUT IN 2 9 OUT 11 GND 3 11 8 ADJ GND 3 8 ADJ GND SW 4 GND 7 PG SW 4 7 PG BST 5 6 SHDN BST 5 6 SHDN MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE T 10-LEAD (3mm × 3mm) PLASTIC DFN JMAX = 125°C, θJA = 40°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 40°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3026EDD#PBF LTC3026EDD#TRPBF LBHW 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3026IDD#PBF LTC3026IDD#TRPBF LBHW 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3026EMSE#PBF LTC3026EMSE#TRPBF LTBJB 10-Lead Plastic MSOP –40°C to 125°C LTC3026IMSE#PBF LTC3026IMSE#TRPBF LTBJB 10-Lead Plastic MSOP –40°C to 125°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3026EDD LTC3026EDD#TR LBHW 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3026IDD LTC3026IDD#TR LBHW 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3026EMSE LTC3026EMSE#TR LTBJB 10-Lead Plastic MSOP –40°C to 125°C LTC3026IMSE LTC3026IMSE#TR LTBJB 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3026ff 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Typical Applications Package Description Revision History Typical Application Related Parts
