Beschreibung18-Bit, 250ksps, Low Power SAR ADC with 102dB SNR
Seiten / Seite26 / 3 — elecTrical characTerisTics. The. denotes the specifications which apply …
Dateiformat / GrößePDF / 1.4 Mb
DokumentenspracheEnglisch

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating

elecTrical characTerisTics The denotes the specifications which apply over the full operating

Modelllinie für dieses Datenblatt

Textversion des Dokuments

LTC2376-18
elecTrical characTerisTics The
l

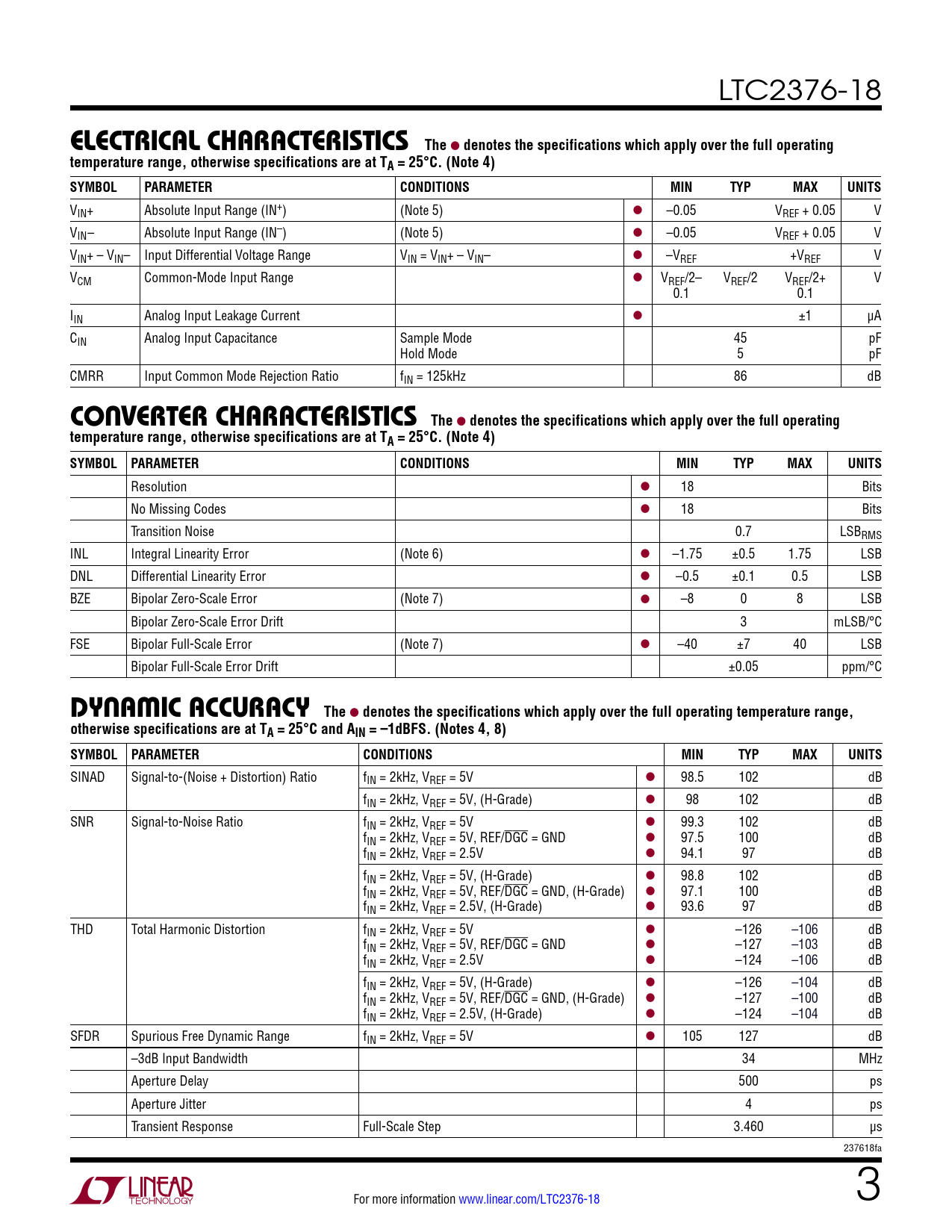

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN+ Absolute Input Range (IN+) (Note 5) l –0.05 VREF + 0.05 V VIN– Absolute Input Range (IN–) (Note 5) l –0.05 VREF + 0.05 V VIN+ – VIN– Input Differential Voltage Range VIN = VIN+ – VIN– l –VREF +VREF V VCM Common-Mode Input Range l VREF/2– VREF/2 VREF/2+ V 0.1 0.1 IIN Analog Input Leakage Current l ±1 µA CIN Analog Input Capacitance Sample Mode 45 pF Hold Mode 5 pF CMRR Input Common Mode Rejection Ratio fIN = 125kHz 86 dB
