Datasheet LTC2192, LTC2191, LTC2190 (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | 16-Bit, 65Msps Low Power Dual ADCs |
| Seiten / Seite | 28 / 8 — TIMING DIAGRAMS. 1-Lane Output Mode. SPI Port Timing (Readback Mode). SPI … |
| Dateiformat / Größe | PDF / 902 Kb |
| Dokumentensprache | Englisch |
TIMING DIAGRAMS. 1-Lane Output Mode. SPI Port Timing (Readback Mode). SPI Port Timing (Write Mode)
Modelllinie für dieses Datenblatt
- LTC2190CUKG#PBF LTC2190CUKG#PBF LTC2190CUKG#TRPBF LTC2190CUKG#TRPBF LTC2190IUKG#PBF LTC2190IUKG#PBF LTC2190IUKG#TRPBF LTC2190IUKG#TRPBF
Textversion des Dokuments
LTC2192 LTC2191/LTC2190

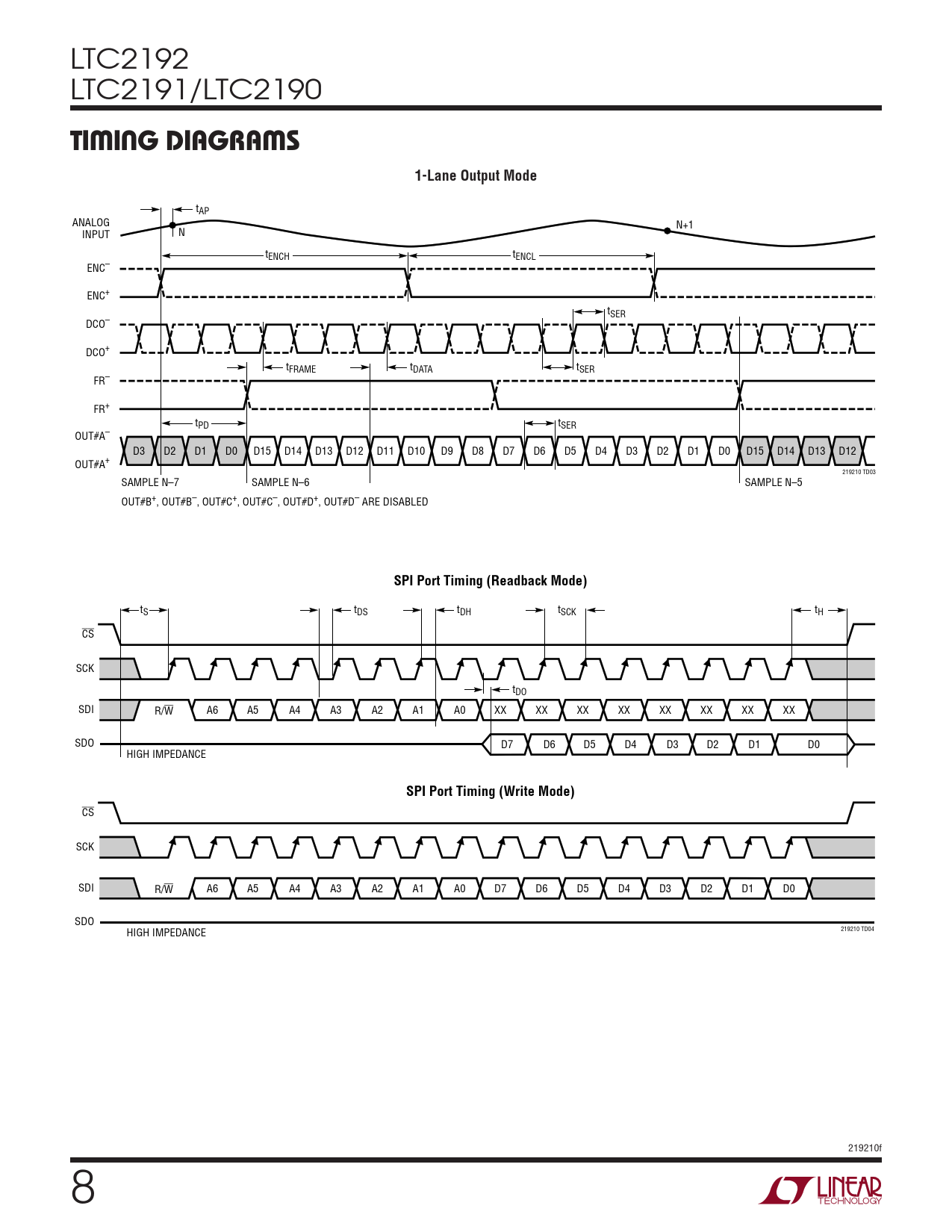

TIMING DIAGRAMS 1-Lane Output Mode
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ tSER DCO– DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D3 D2 D1 D0 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 D15 D14 D13 D12 OUT#A+ 219210 TD03 SAMPLE N–7 SAMPLE N–6 SAMPLE N–5 OUT#B+, OUT#B–, OUT#C+, OUT#C–, OUT#D+, OUT#D– ARE DISABLED
SPI Port Timing (Readback Mode)
tS tDS tDH tSCK tH CS SCK tDO SDI R/W A6 A5 A4 A3 A2 A1 A0 XX XX XX XX XX XX XX XX SDO D7 D6 D5 D4 D3 D2 D1 D0 HIGH IMPEDANCE
SPI Port Timing (Write Mode)
CS SCK SDI R/W A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 SDO 219210 TD04 HIGH IMPEDANCE 219210f 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
