AD811. Data Sheet. AD811J/AD811A1. AD811S2. Parameter. Conditions. Min Typ. Max Min. Typ. Max Unit

AD811 Data Sheet AD811J/AD811A1 AD811S2 Parameter Conditions Min Typ Max Min Typ Max Unit

Modelllinie für dieses Datenblatt

AD811

Textversion des Dokuments

link to page 5 link to page 5

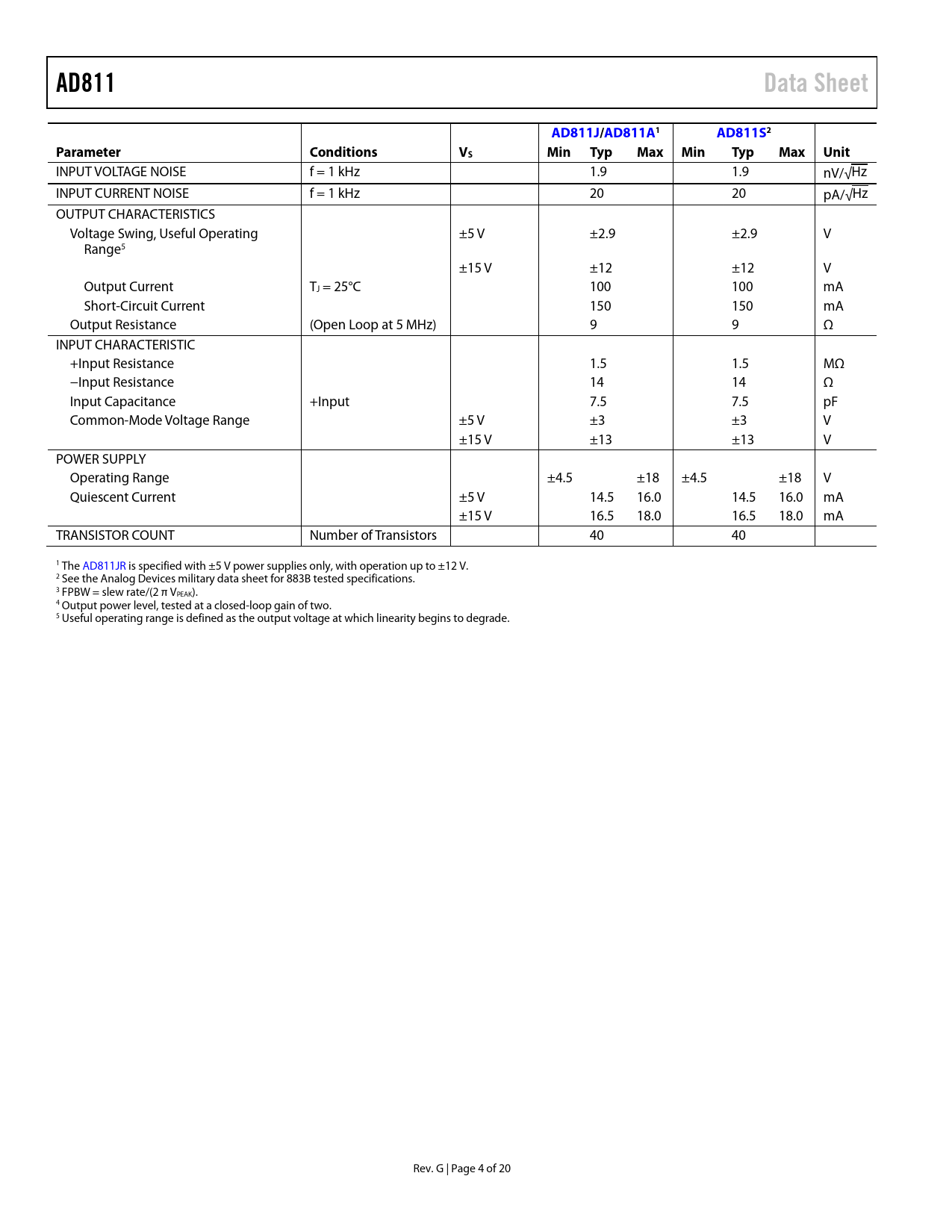

AD811 Data Sheet AD811J/AD811A1 AD811S2 Parameter Conditions VS Min Typ Max Min Typ Max Unit
INPUT VOLTAGE NOISE f = 1 kHz 1.9 1.9 nV/√Hz INPUT CURRENT NOISE f = 1 kHz 20 20 pA/√Hz OUTPUT CHARACTERISTICS Voltage Swing, Useful Operating ±5 V ±2.9 ±2.9 V Range5 ±15 V ±12 ±12 V Output Current TJ = 25°C 100 100 mA Short-Circuit Current 150 150 mA Output Resistance (Open Loop at 5 MHz) 9 9 Ω INPUT CHARACTERISTIC +Input Resistance 1.5 1.5 MΩ −Input Resistance 14 14 Ω Input Capacitance +Input 7.5 7.5 pF Common-Mode Voltage Range ±5 V ±3 ±3 V ±15 V ±13 ±13 V POWER SUPPLY Operating Range ±4.5 ±18 ±4.5 ±18 V Quiescent Current ±5 V 14.5 16.0 14.5 16.0 mA ±15 V 16.5 18.0 16.5 18.0 mA TRANSISTOR COUNT Number of Transistors 40 40 1 The AD811JR is specified with ±5 V power supplies only, with operation up to ±12 V. 2 See the Analog Devices military data sheet for 883B tested specifications. 3 FPBW = slew rate/(2 π VPEAK). 4 Output power level, tested at a closed-loop gain of two. 5 Useful operating range is defined as the output voltage at which linearity begins to degrade. Rev. G | Page 4 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION METALIZATION PHOTOGRAPH ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION GENERAL DESIGN CONSIDERATIONS ACHIEVING THE FLATTEST GAIN RESPONSE AT HIGH FREQUENCY Choice of Feedback and Gain Resistors Printed Circuit Board Layout Considerations Quality of Coaxial Cable Power Supply Bypassing Driving Capacitive Loads OPERATION AS A VIDEO LINE DRIVER AN 80 MHZ VOLTAGE-CONTROLLED AMPLIFIER CIRCUIT A VIDEO KEYER CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
