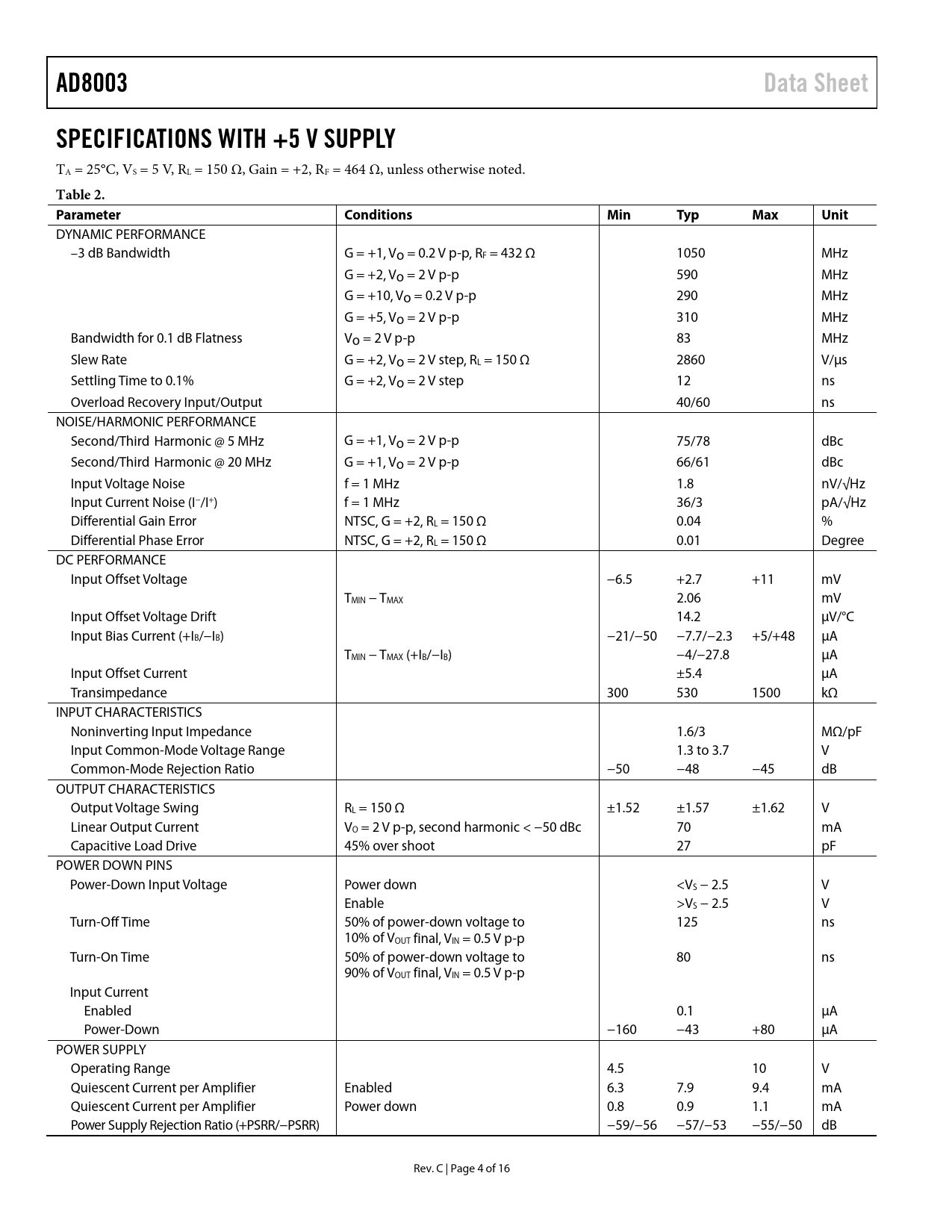

AD8003 Data Sheet SPECIFICATIONS WITH +5 V SUPPLY
TA = 25°C, VS = 5 V, RL = 150 Ω, Gain = +2, RF = 464 Ω, unless otherwise noted.
Table 2. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Bandwidth G = +1, Vo = 0.2 V p-p, RF = 432 Ω 1050 MHz G = +2, Vo = 2 V p-p 590 MHz G = +10, Vo = 0.2 V p-p 290 MHz G = +5, Vo = 2 V p-p 310 MHz Bandwidth for 0.1 dB Flatness Vo = 2 V p-p 83 MHz Slew Rate G = +2, Vo = 2 V step, RL = 150 Ω 2860 V/µs Settling Time to 0.1% G = +2, Vo = 2 V step 12 ns Overload Recovery Input/Output 40/60 ns NOISE/HARMONIC PERFORMANCE Second/Third Harmonic @ 5 MHz G = +1, Vo = 2 V p-p 75/78 dBc Second/Third Harmonic @ 20 MHz G = +1, Vo = 2 V p-p 66/61 dBc Input Voltage Noise f = 1 MHz 1.8 nV/√Hz Input Current Noise (I−/I+) f = 1 MHz 36/3 pA/√Hz Differential Gain Error NTSC, G = +2, RL = 150 Ω 0.04 % Differential Phase Error NTSC, G = +2, RL = 150 Ω 0.01 Degree DC PERFORMANCE Input Offset Voltage −6.5 +2.7 +11 mV TMIN − TMAX 2.06 mV Input Offset Voltage Drift 14.2 µV/°C Input Bias Current (+IB/−IB) −21/−50 −7.7/−2.3 +5/+48 µA TMIN − TMAX (+IB/−IB)

−4/−27.8 µA Input Offset Current ±5.4 µA Transimpedance 300 530 1500 kΩ INPUT CHARACTERISTICS Noninverting Input Impedance 1.6/3 MΩ/pF Input Common-Mode Voltage Range 1.3 to 3.7 V Common-Mode Rejection Ratio −50 −48 −45 dB OUTPUT CHARACTERISTICS Output Voltage Swing RL = 150 Ω ±1.52 ±1.57 ±1.62 V Linear Output Current VO = 2 V p-p, second harmonic < −50 dBc 70 mA Capacitive Load Drive 45% over shoot 27 pF POWER DOWN PINS Power-Down Input Voltage Power down <VS − 2.5 V Enable >VS − 2.5 V Turn-Off Time 50% of power-down voltage to 125 ns 10% of VOUT final, VIN = 0.5 V p-p Turn-On Time 50% of power-down voltage to 80 ns 90% of VOUT final, VIN = 0.5 V p-p Input Current Enabled 0.1 µA Power-Down −160 −43 +80 µA POWER SUPPLY Operating Range 4.5 10 V Quiescent Current per Amplifier Enabled 6.3 7.9 9.4 mA Quiescent Current per Amplifier Power down 0.8 0.9 1.1 mA Power Supply Rejection Ratio (+PSRR/−PSRR) −59/−56 −57/−53 −55/−50 dB Rev. C | Page 4 of 16 Document Outline Features Applications Connection Diagram General Description Table of Contents Revision History Specifications with ±5 V Supply Specifications with +5 V Supply Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Applications Information Gain Configurations RGB Video Driver Printed Circuit Board Layout Low Distortion Pinout Signal Routing Exposed Paddle Power Supply Bypassing Grounding Outline Dimensions Ordering Guide
