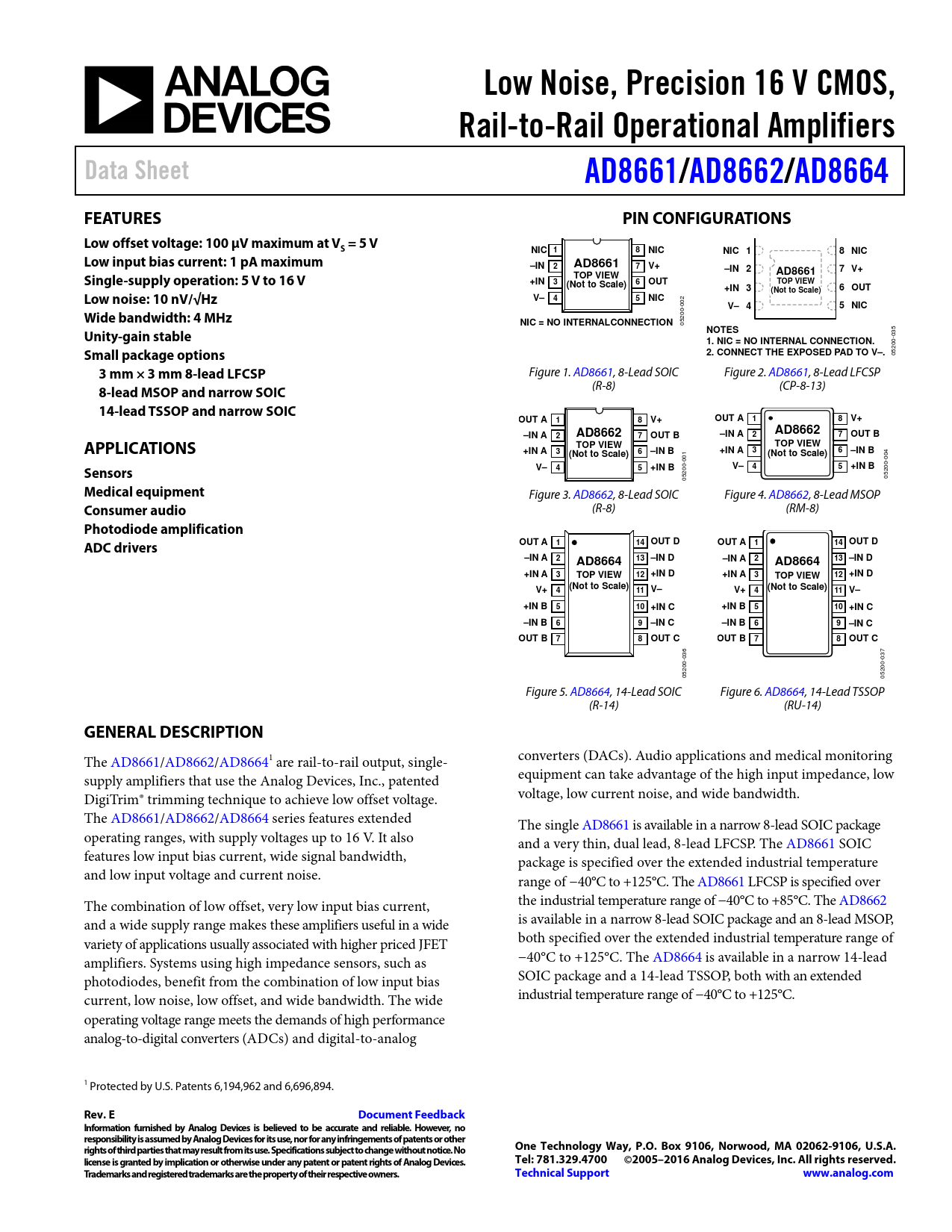

Low Noise, Precision 16 V CMOS,. Rail-to-Rail Operational Amplifiers. Data Sheet. AD8661. /AD8662/. AD8664. FEATURES

Datasheet AD8661, AD8662, AD8664 Analog Devices, Revision: E

Modelllinie für dieses Datenblatt

Textversion des Dokuments

Low Noise, Precision 16 V CMOS, Rail-to-Rail Operational Amplifiers Data Sheet AD8661 /AD8662/ AD8664 FEATURES PIN CONFIGURATIONS Low offset voltage: 100 µV maximum at V = 5 V S NIC 1 8 NIC NIC 1 8 NIC Low input bias current: 1 pA maximum –IN 2 AD8661 7 V+ –IN 2 7 V+ AD8661 Single-supply operation: 5 V to 16 V TOP VIEW +IN 3 6 OUT (Not to Scale) TOP VIEW +IN 3 6 OUT (Not to Scale) Low noise: 10 nV/√Hz V– 4 5 NIC
002
V– 4 5 NIC Wide bandwidth: 4 MHz NIC = NO INTERNALCONNECTION
05200-
Unity-gain stable NOTES
035
1. NIC = NO INTERNAL CONNECTION. Small package options 2. CONNECT THE EXPOSED PAD TO V–.
05200-
3 mm × 3 mm 8-lead LFCSP
Figure 1. AD8661, 8-Lead SOIC Figure 2. AD8661, 8-Lead LFCSP
8-lead MSOP and narrow SOIC
(R-8) (CP-8-13)
14-lead TSSOP and narrow SOIC OUT A 1 8 V+ OUT A 1 8 V+ AD8662 –IN A 2 AD8662 7 OUT B –IN A 2 7 OUT B APPLICATIONS TOP VIEW TOP VIEW +IN A 3 6 –IN B (Not to Scale) +IN A 3 6 –IN B (Not to Scale)
001 004
Sensors V– 4 5 +IN B V– 4 5 +IN B
05200- 05200-
Medical equipment
Figure 3. AD8662, 8-Lead SOIC Figure 4. AD8662, 8-Lead MSOP
Consumer audio
(R-8) (RM-8)
Photodiode amplification ADC drivers OUT A 1 14 OUT D OUT A 1 14 OUT D –IN A 2 AD8664 13 –IN D –IN A 2 13 –IN D AD8664 +IN A 3 TOP VIEW 12 +IN D +IN A 3 12 +IN D TOP VIEW (Not to Scale) V+ (Not to Scale) 4 11 V– V+ 4 11 V– +IN B 5 10 +IN C +IN B 5 10 +IN C –IN B 6 9 –IN C –IN B 6 9 –IN C OUT B 7 8 OUT C OUT B 7 8 OUT C
036 037 05200- 05200- Figure 5. AD8664, 14-Lead SOIC Figure 6. AD8664, 14-Lead TSSOP (R-14) (RU-14)
GENERAL DESCRIPTION
The AD8661/AD8662/AD86641 are rail-to-rail output, single- converters (DACs). Audio applications and medical monitoring supply amplifiers that use the Analog Devices, Inc., patented equipment can take advantage of the high input impedance, low DigiTrim® trimming technique to achieve low offset voltage. voltage, low current noise, and wide bandwidth. The AD8661/AD8662/AD8664 series features extended The single AD8661 is available in a narrow 8-lead SOIC package operating ranges, with supply voltages up to 16 V. It also and a very thin, dual lead, 8-lead LFCSP. The AD8661 SOIC features low input bias current, wide signal bandwidth, package is specified over the extended industrial temperature and low input voltage and current noise. range of −40°C to +125°C. The AD8661 LFCSP is specified over The combination of low offset, very low input bias current, the industrial temperature range of −40°C to +85°C. The AD8662 and a wide supply range makes these amplifiers useful in a wide is available in a narrow 8-lead SOIC package and an 8-lead MSOP, variety of applications usually associated with higher priced JFET both specified over the extended industrial temperature range of amplifiers. Systems using high impedance sensors, such as −40°C to +125°C. The AD8664 is available in a narrow 14-lead photodiodes, benefit from the combination of low input bias SOIC package and a 14-lead TSSOP, both with an extended current, low noise, low offset, and wide bandwidth. The wide industrial temperature range of −40°C to +125°C. operating voltage range meets the demands of high performance analog-to-digital converters (ADCs) and digital-to-analog 1 Protected by U.S. Patents 6,194,962 and 6,696,894.
Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2005–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS AD8661/AD8662/AD8664 ELECTRICAL CHARACTERISTICS—SOIC, MSOP, AND TSSOP AD8661/AD8662/AD8664 ELECTRICAL CHARACTERISTICS—SOIC, MSOP, AND TSSOP AD8661 ELECTRICAL CHARACTERISTICS—LFCSP ONLY AD8661 ELECTRICAL CHARACTERISTICS—LFCSP ONLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE NOTES
