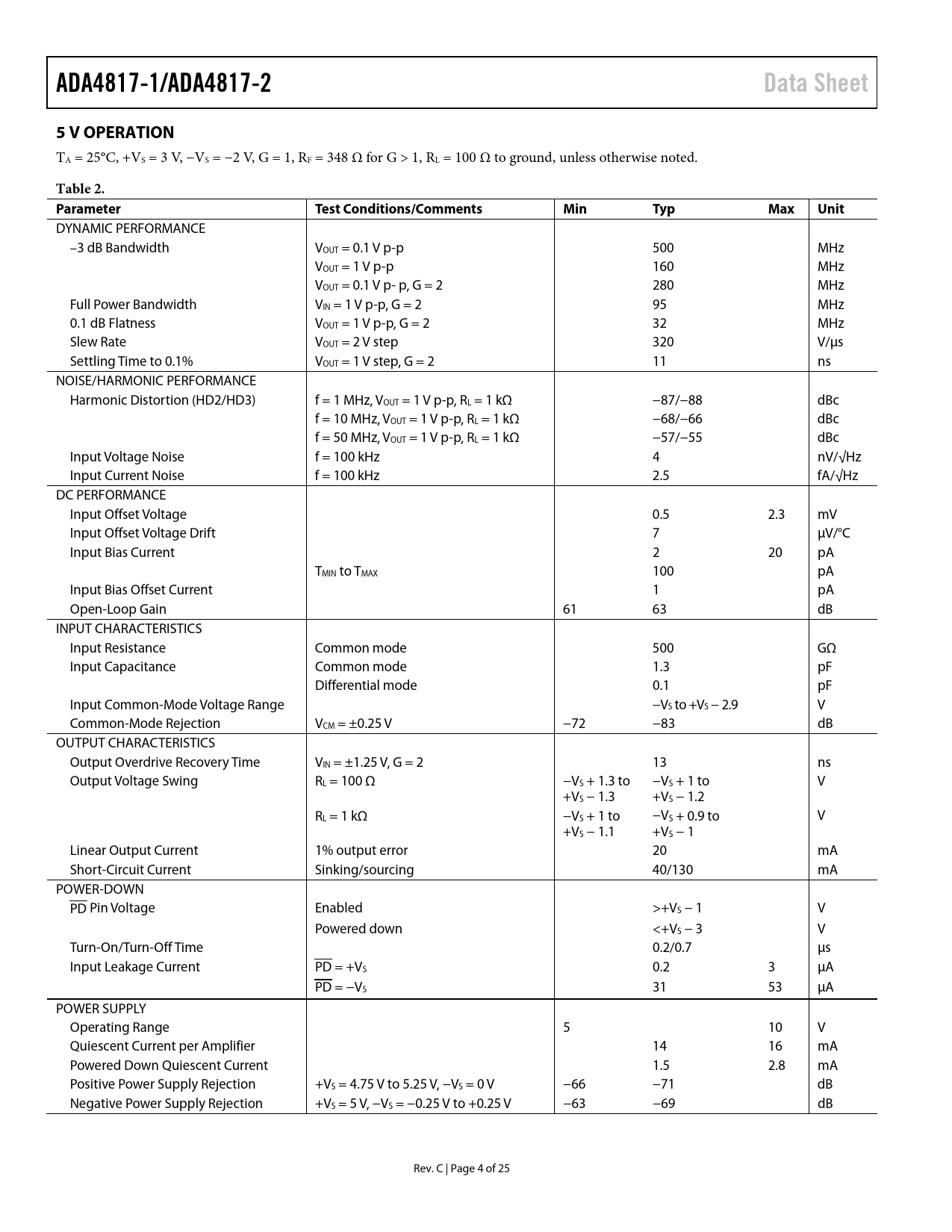

ADA4817-1/ADA4817-2. Data Sheet. 5 V OPERATION. Table 2. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit

ADA4817-1/ADA4817-2 Data Sheet 5 V OPERATION Table 2 Parameter Test Conditions/Comments Min Typ Max Unit

Textversion des Dokuments

ADA4817-1/ADA4817-2 Data Sheet 5 V OPERATION
TA = 25°C, +VS = 3 V, −VS = −2 V, G = 1, RF = 348 Ω for G > 1, RL = 100 Ω to ground, unless otherwise noted.
Table 2. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Bandwidth VOUT = 0.1 V p-p 500 MHz VOUT = 1 V p-p 160 MHz VOUT = 0.1 V p- p, G = 2 280 MHz Full Power Bandwidth VIN = 1 V p-p, G = 2 95 MHz 0.1 dB Flatness VOUT = 1 V p-p, G = 2 32 MHz Slew Rate VOUT = 2 V step 320 V/µs Settling Time to 0.1% VOUT = 1 V step, G = 2 11 ns NOISE/HARMONIC PERFORMANCE Harmonic Distortion (HD2/HD3) f = 1 MHz, VOUT = 1 V p-p, RL = 1 kΩ −87/−88 dBc f = 10 MHz, VOUT = 1 V p-p, RL = 1 kΩ −68/−66 dBc f = 50 MHz, VOUT = 1 V p-p, RL = 1 kΩ −57/−55 dBc Input Voltage Noise f = 100 kHz 4 nV/√Hz Input Current Noise f = 100 kHz 2.5 fA/√Hz DC PERFORMANCE Input Offset Voltage 0.5 2.3 mV Input Offset Voltage Drift 7 µV/°C Input Bias Current 2 20 pA TMIN to TMAX 100 pA Input Bias Offset Current 1 pA Open-Loop Gain 61 63 dB INPUT CHARACTERISTICS Input Resistance Common mode 500 GΩ Input Capacitance Common mode 1.3 pF Differential mode 0.1 pF Input Common-Mode Voltage Range −VS to +VS − 2.9 V Common-Mode Rejection VCM = ±0.25 V −72 −83 dB OUTPUT CHARACTERISTICS Output Overdrive Recovery Time VIN = ±1.25 V, G = 2 13 ns Output Voltage Swing RL = 100 Ω −VS + 1.3 to −VS + 1 to V +VS − 1.3 +VS − 1.2 RL = 1 kΩ −VS + 1 to −VS + 0.9 to V +VS − 1.1 +VS − 1 Linear Output Current 1% output error 20 mA Short-Circuit Current Sinking/sourcing 40/130 mA POWER-DOWN PD Pin Voltage Enabled >+VS − 1 V Powered down <+VS − 3 V Turn-On/Turn-Off Time 0.2/0.7 µs Input Leakage Current PD = +VS 0.2 3 µA PD = −VS 31 53 µA POWER SUPPLY Operating Range 5 10 V Quiescent Current per Amplifier 14 16 mA Powered Down Quiescent Current 1.5 2.8 mA Positive Power Supply Rejection +VS = 4.75 V to 5.25 V, −VS = 0 V −66 −71 dB Negative Power Supply Rejection +VS = 5 V, −VS = −0.25 V to +0.25 V −63 −69 dB Rev. C | Page 4 of 25 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V OPERATION 5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM SAFE POWER DISSIPATION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION CLOSED-LOOP FREQUENCY RESPONSE NONINVERTING CLOSED-LOOP FREQUENCY RESPONSE INVERTING CLOSED-LOOP FREQUENCY RESPONSE WIDEBAND OPERATION DRIVING CAPACITIVE LOADS THERMAL CONSIDERATIONS POWER-DOWN OPERATION CAPACITIVE FEEDBACK HIGHER FREQUENCY ATTENUATION LAYOUT, GROUNDING, AND BYPASSING CONSIDERATIONS SIGNAL ROUTING POWER SUPPLY BYPASSING GROUNDING EXPOSED PADDLE LEAKAGE CURRENTS INPUT CAPACITANCE INPUT-TO-INPUT/OUTPUT COUPLING APPLICATIONS INFORMATION LOW DISTORTION PINOUT WIDEBAND PHOTODIODE PREAMP HIGH SPEED JFET INPUT INSTRUMENTATION AMPLIFIER ACTIVE LOW-PASS FILTER (LPF) OUTLINE DIMENSIONS ORDERING GUIDE
