Datasheet ADA4051-1, ADA4051-2 (Analog Devices)

HerstellerAnalog Devices
Beschreibung1.8 V, µpower, Zero-Drift, RRIO Single Amplifier
Seiten / Seite22 / 1 — 1.8 V, Micropower, Zero-Drift,. Rail-to-Rail Input/Output Op Amps. Data …
RevisionC
Dateiformat / GrößePDF / 663 Kb
DokumentenspracheEnglisch

1.8 V, Micropower, Zero-Drift,. Rail-to-Rail Input/Output Op Amps. Data Sheet. ADA4051-1/. ADA4051-2. FEATURES. PIN CONFIGURATIONS

Datasheet ADA4051-1, ADA4051-2 Analog Devices, Revision: C

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 1

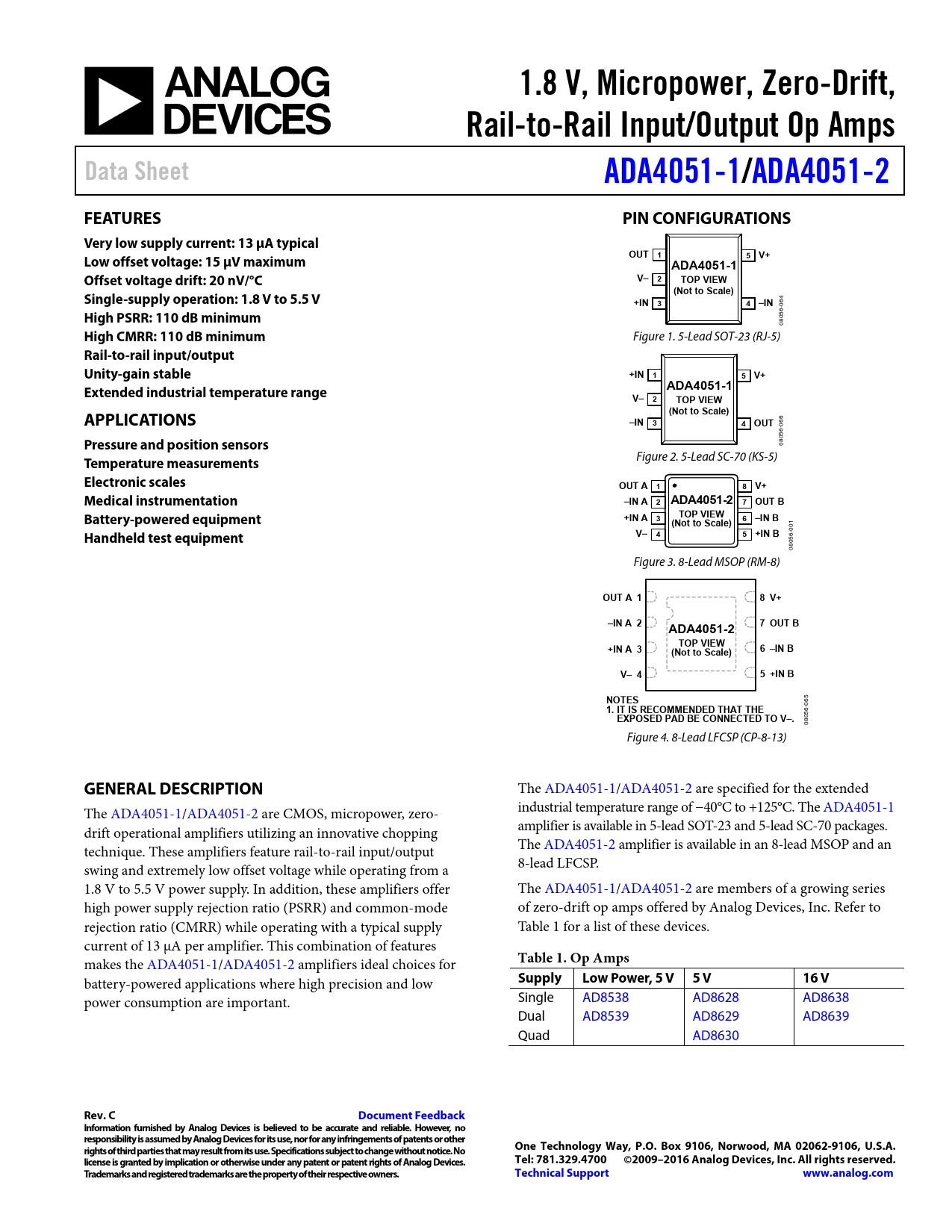

1.8 V, Micropower, Zero-Drift, Rail-to-Rail Input/Output Op Amps Data Sheet ADA4051-1/ ADA4051-2 FEATURES PIN CONFIGURATIONS Very low supply current: 13 μA typical OUT 1 5 V+ Low offset voltage: 15 μV maximum ADA4051-1 Offset voltage drift: 20 nV/°C V– 2 TOP VIEW (Not to Scale) Single-supply operation: 1.8 V to 5.5 V +IN
4
3 4 –IN
06 6-
High PSRR: 110 dB minimum
05 08
High CMRR: 110 dB minimum
Figure 1. 5-Lead SOT-23 (RJ-5)
Rail-to-rail input/output Unity-gain stable +IN 1 5 V+ ADA4051-1 Extended industrial temperature range V– 2 TOP VIEW (Not to Scale) APPLICATIONS –IN
6
3 4 OUT
06 6- 05
Pressure and position sensors
08 Figure 2. 5-Lead SC-70 (KS-5)
Temperature measurements Electronic scales OUT A 1 8 V+ Medical instrumentation –IN A 2 ADA4051-2 7 OUT B TOP VIEW Battery-powered equipment +IN A 3 6 –IN B (Not to Scale)
1 00
Handheld test equipment V– 4 5 +IN B
6- 05 08 Figure 3. 8-Lead MSOP (RM-8)
OUT A 1 8 V+ –IN A 2 7 OUT B ADA4051-2 TOP VIEW +IN A 3 6 –IN B (Not to Scale) V– 4 5 +IN B NOTES
065
1. IT IS RECOMMENDED THAT THE
56-
EXPOSED PAD BE CONNECTED TO V–.
080 Figure 4. 8-Lead LFCSP (CP-8-13)
GENERAL DESCRIPTION
The ADA4051-1/ADA4051-2 are specified for the extended The ADA4051-1/ADA4051-2 are CMOS, micropower, zero- industrial temperature range of −40°C to +125°C. The ADA4051-1 drift operational amplifiers utilizing an innovative chopping amplifier is available in 5-lead SOT-23 and 5-lead SC-70 packages. technique. These amplifiers feature rail-to-rail input/output The ADA4051-2 amplifier is available in an 8-lead MSOP and an swing and extremely low offset voltage while operating from a 8-lead LFCSP. 1.8 V to 5.5 V power supply. In addition, these amplifiers offer The ADA4051-1/ADA4051-2 are members of a growing series high power supply rejection ratio (PSRR) and common-mode of zero-drift op amps offered by Analog Devices, Inc. Refer to rejection ratio (CMRR) while operating with a typical supply Table 1 for a list of these devices. current of 13 μA per amplifier. This combination of features
Table 1. Op Amps
makes the ADA4051-1/ADA4051-2 amplifiers ideal choices for battery-powered applications where high precision and low
Supply Low Power, 5 V 5 V 16 V
power consumption are important. Single AD8538 AD8628 AD8638 Dual AD8539 AD8629 AD8639 Quad AD8630
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2009–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—1.8 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INPUT VOLTAGE RANGE OUTPUT PHASE REVERSAL OUTLINE DIMENSIONS ORDERING GUIDE
