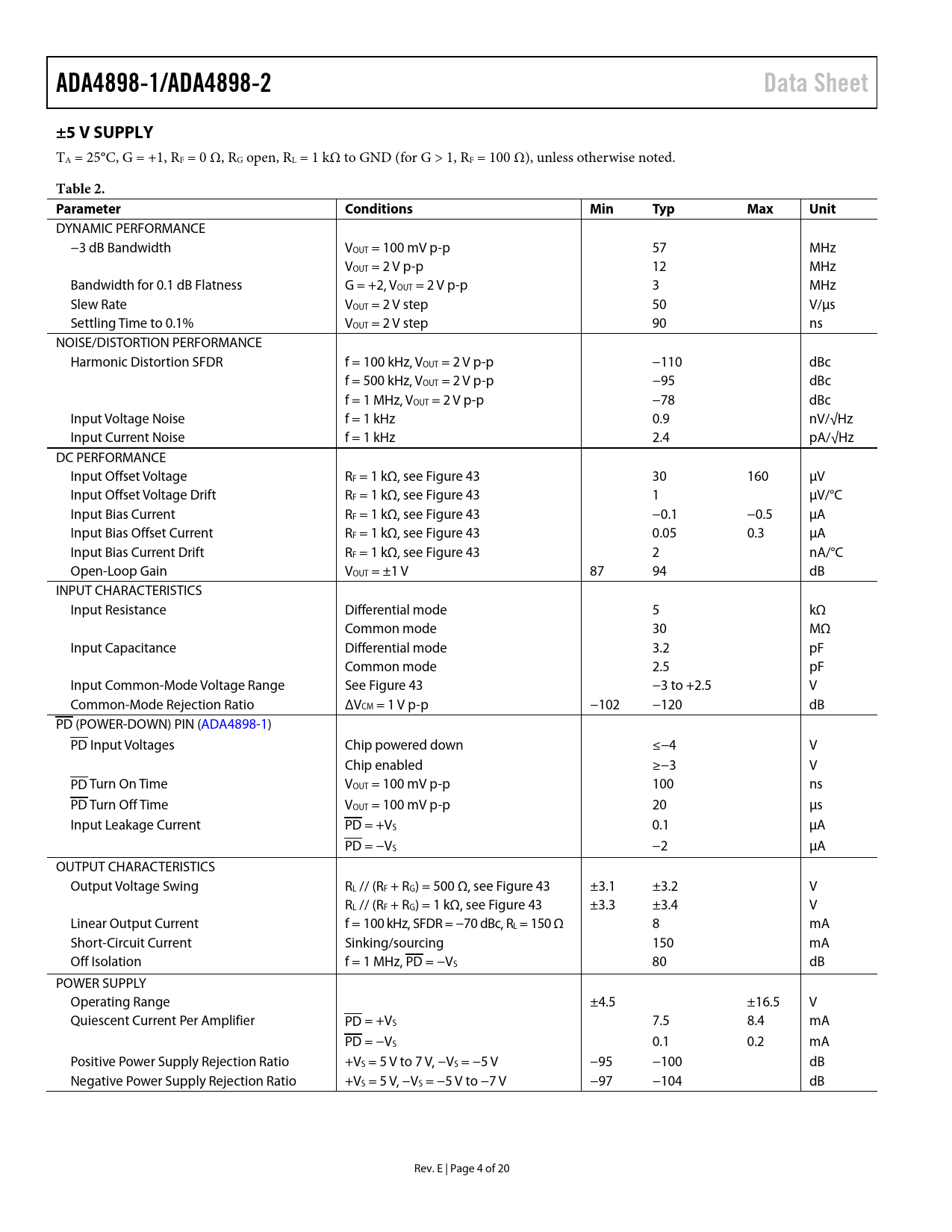

ADA4898-1/ADA4898-2. Data Sheet. ±5 V SUPPLY. Table 2. Parameter. Conditions. Min. Typ. Max. Unit

ADA4898-1/ADA4898-2 Data Sheet ±5 V SUPPLY Table 2 Parameter Conditions Min Typ Max Unit

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 13 link to page 13 link to page 13 link to page 13 link to page 13 link to page 13 link to page 13 link to page 13
ADA4898-1/ADA4898-2 Data Sheet ±5 V SUPPLY
TA = 25°C, G = +1, RF = 0 Ω, RG open, RL = 1 kΩ to GND (for G > 1, RF = 100 Ω), unless otherwise noted.
Table 2. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth VOUT = 100 mV p-p 57 MHz VOUT = 2 V p-p 12 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 2 V p-p 3 MHz Slew Rate VOUT = 2 V step 50 V/µs Settling Time to 0.1% VOUT = 2 V step 90 ns NOISE/DISTORTION PERFORMANCE Harmonic Distortion SFDR f = 100 kHz, VOUT = 2 V p-p −110 dBc f = 500 kHz, VOUT = 2 V p-p −95 dBc f = 1 MHz, VOUT = 2 V p-p −78 dBc Input Voltage Noise f = 1 kHz 0.9 nV/√Hz Input Current Noise f = 1 kHz 2.4 pA/√Hz DC PERFORMANCE Input Offset Voltage RF = 1 kΩ, see Figure 43 30 160 µV Input Offset Voltage Drift RF = 1 kΩ, see Figure 43 1 µV/°C Input Bias Current RF = 1 kΩ, see Figure 43 −0.1 −0.5 µA Input Bias Offset Current RF = 1 kΩ, see Figure 43 0.05 0.3 µA Input Bias Current Drift RF = 1 kΩ, see Figure 43 2 nA/°C Open-Loop Gain VOUT = ±1 V 87 94 dB INPUT CHARACTERISTICS Input Resistance Differential mode 5 kΩ Common mode 30 MΩ Input Capacitance Differential mode 3.2 pF Common mode 2.5 pF Input Common-Mode Voltage Range See Figure 43 −3 to +2.5 V Common-Mode Rejection Ratio ΔVCM = 1 V p-p −102 −120 dB PD (POWER-DOWN) PIN (ADA4898-1) PD Input Voltages Chip powered down ≤−4 V Chip enabled ≥−3 V PD Turn On Time VOUT = 100 mV p-p 100 ns PD Turn Off Time VOUT = 100 mV p-p 20 μs Input Leakage Current PD = +VS 0.1 µA PD = −VS −2 µA OUTPUT CHARACTERISTICS Output Voltage Swing RL // (RF + RG) = 500 Ω, see Figure 43 ±3.1 ±3.2 V RL // (RF + RG) = 1 kΩ, see Figure 43 ±3.3 ±3.4 V Linear Output Current f = 100 kHz, SFDR = −70 dBc, RL = 150 Ω 8 mA Short-Circuit Current Sinking/sourcing 150 mA Off Isolation f = 1 MHz, PD = −VS 80 dB POWER SUPPLY Operating Range ±4.5 ±16.5 V Quiescent Current Per Amplifier PD = +VS 7.5 8.4 mA PD = −VS 0.1 0.2 mA Positive Power Supply Rejection Ratio +VS = 5 V to 7 V, −VS = −5 V −95 −100 dB Negative Power Supply Rejection Ratio +VS = 5 V, −VS = −5 V to −7 V −97 −104 dB Rev. E | Page 4 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V SUPPLY ±5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION (POWER-DOWN) PIN FOR THE ADA4898-1 APPLICATIONS INFORMATION HIGHER FEEDBACK RESISTOR GAIN OPERATION RECOMMENDED VALUES FOR VARIOUS GAINS NOISE CIRCUIT CONSIDERATIONS PCB LAYOUT POWER SUPPLY BYPASSING GROUNDING OUTLINE DIMENSIONS ORDERING GUIDE NOTES NOTES NOTES
