Datasheet LTC2358-18 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | Buffered Octal, 18-Bit, 200ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range |
| Seiten / Seite | 38 / 4 — DYNAMIC ACCURACY. The. denotes the specifications which apply over the … |
| Dateiformat / Größe | PDF / 2.3 Mb |
| Dokumentensprache | Englisch |

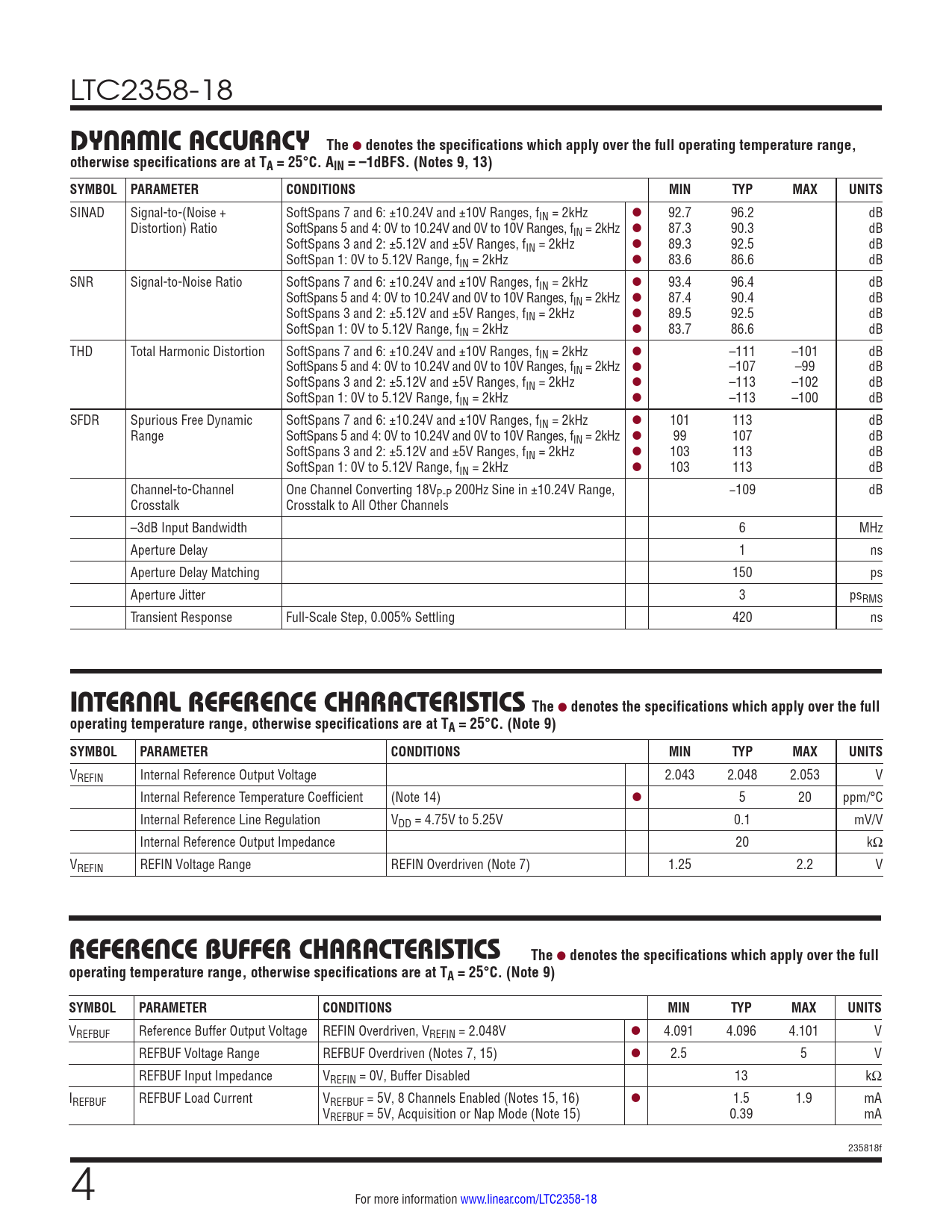

DYNAMIC ACCURACY. The. denotes the specifications which apply over the full operating temperature range,
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2358-18
DYNAMIC ACCURACY The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. AIN = –1dBFS. (Notes 9, 13) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SINAD Signal-to-(Noise + SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l 92.7 96.2 dB Distortion) Ratio SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l 87.3 90.3 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l 89.3 92.5 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l 83.6 86.6 dB SNR Signal-to-Noise Ratio SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l 93.4 96.4 dB SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l 87.4 90.4 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l 89.5 92.5 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l 83.7 86.6 dB THD Total Harmonic Distortion SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l –111 –101 dB SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l –107 –99 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l –113 –102 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l –113 –100 dB SFDR Spurious Free Dynamic SoftSpans 7 and 6: ±10.24V and ±10V Ranges, fIN = 2kHz l 101 113 dB Range SoftSpans 5 and 4: 0V to 10.24V and 0V to 10V Ranges, fIN = 2kHz l 99 107 dB SoftSpans 3 and 2: ±5.12V and ±5V Ranges, fIN = 2kHz l 103 113 dB SoftSpan 1: 0V to 5.12V Range, fIN = 2kHz l 103 113 dB Channel-to-Channel One Channel Converting 18VP-P 200Hz Sine in ±10.24V Range, −109 dB Crosstalk Crosstalk to All Other Channels –3dB Input Bandwidth 6 MHz Aperture Delay 1 ns Aperture Delay Matching 150 ps Aperture Jitter 3 psRMS Transient Response Full-Scale Step, 0.005% Settling 420 ns
INTERNAL REFERENCE CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VREFIN Internal Reference Output Voltage 2.043 2.048 2.053 V Internal Reference Temperature Coefficient (Note 14) l 5 20 ppm/°C Internal Reference Line Regulation VDD = 4.75V to 5.25V 0.1 mV/V Internal Reference Output Impedance 20 kΩ VREFIN REFIN Voltage Range REFIN Overdriven (Note 7) 1.25 2.2 V
REFERENCE BUFFER CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VREFBUF Reference Buffer Output Voltage REFIN Overdriven, VREFIN = 2.048V l 4.091 4.096 4.101 V REFBUF Voltage Range REFBUF Overdriven (Notes 7, 15) l 2.5 5 V REFBUF Input Impedance VREFIN = 0V, Buffer Disabled 13 kΩ IREFBUF REFBUF Load Current VREFBUF = 5V, 8 Channels Enabled (Notes 15, 16) l 1.5 1.9 mA VREFBUF = 5V, Acquisition or Nap Mode (Note 15) 0.39 mA 235818f 4 For more information www.linear.com/LTC2358-18 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Configuration Tables Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Typical Application Related Parts
