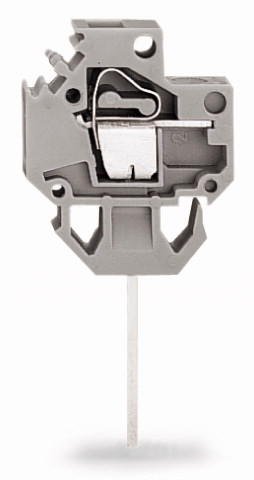

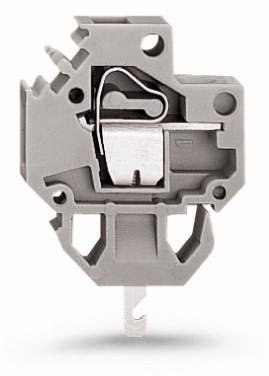

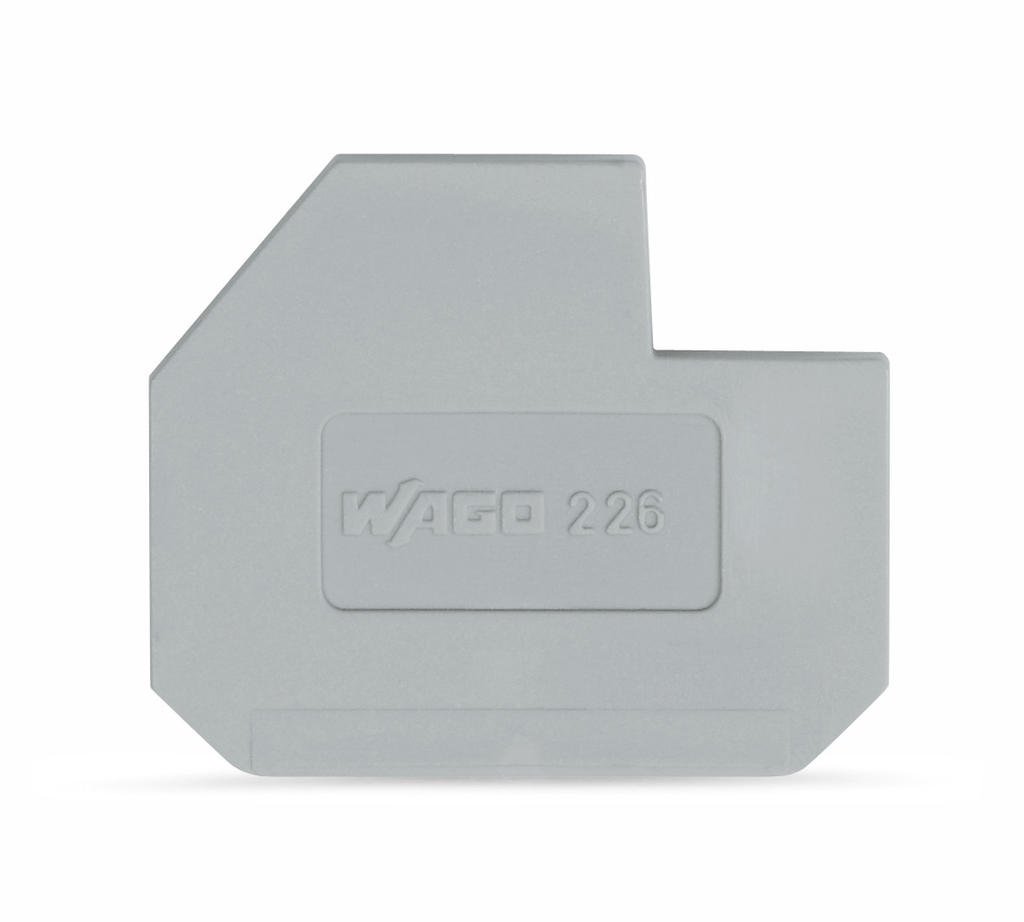

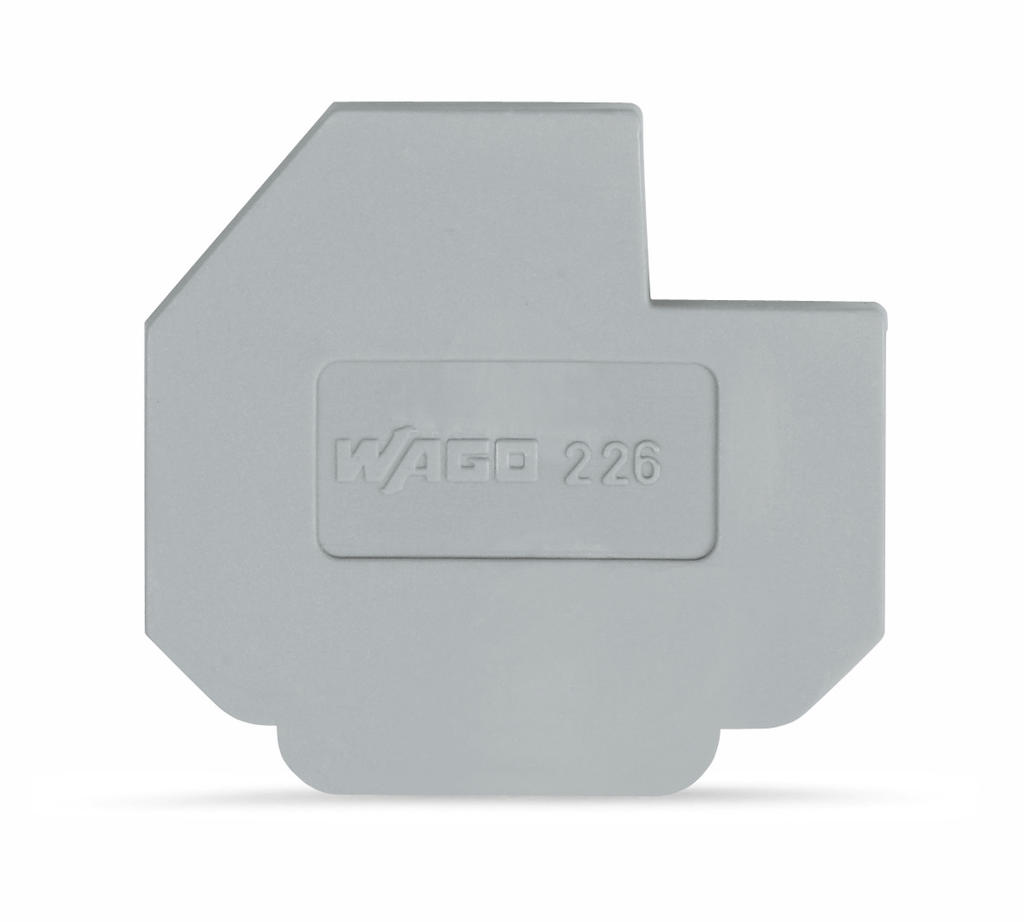

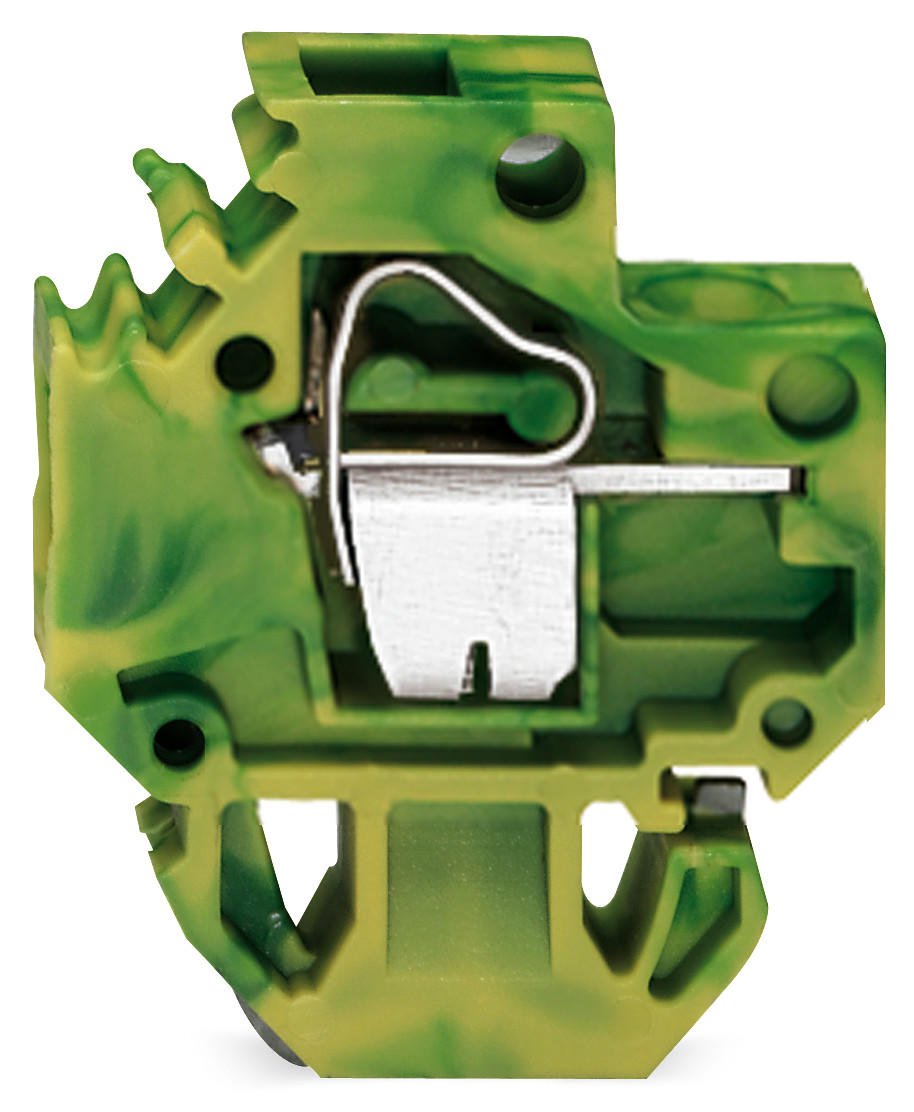

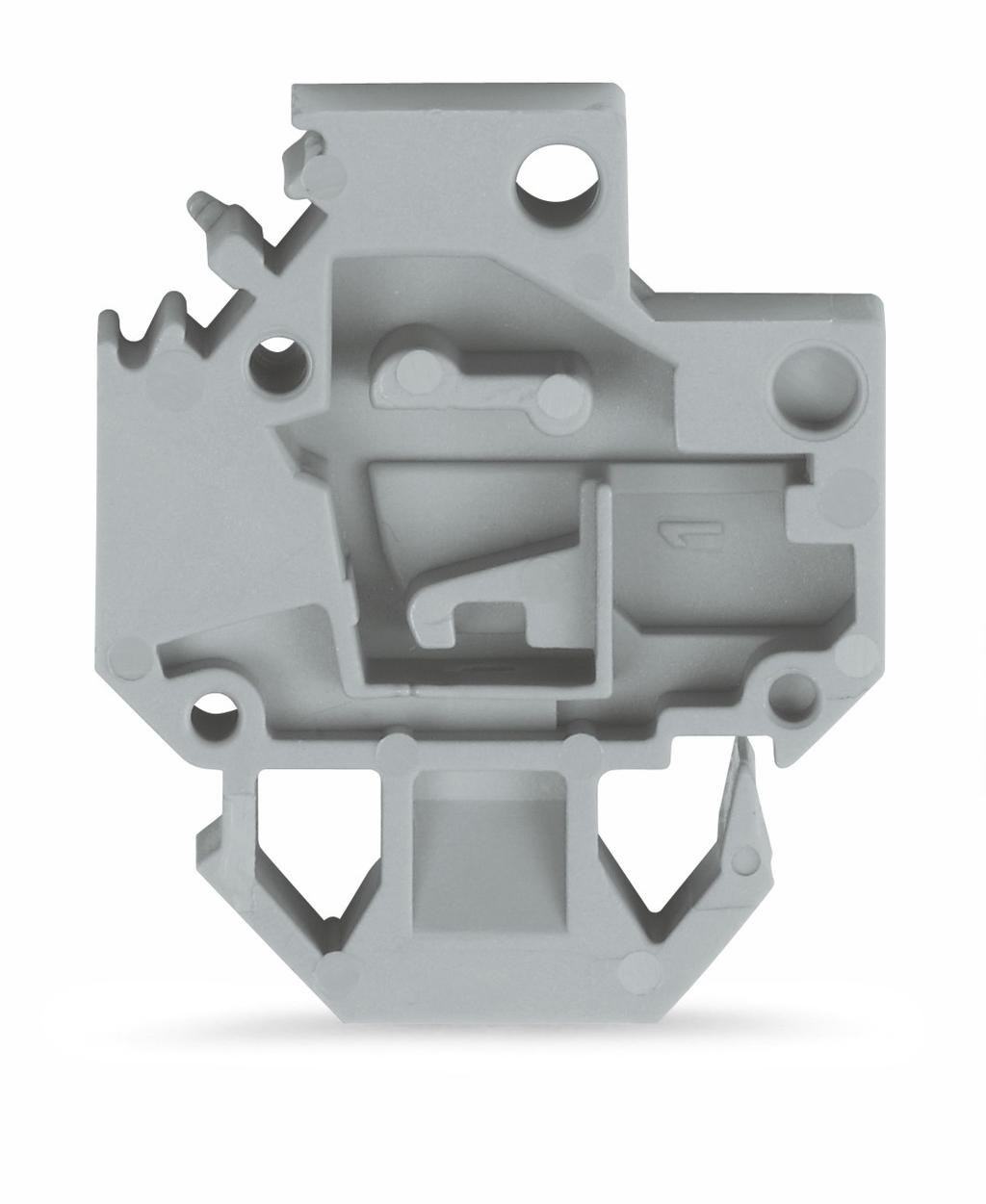

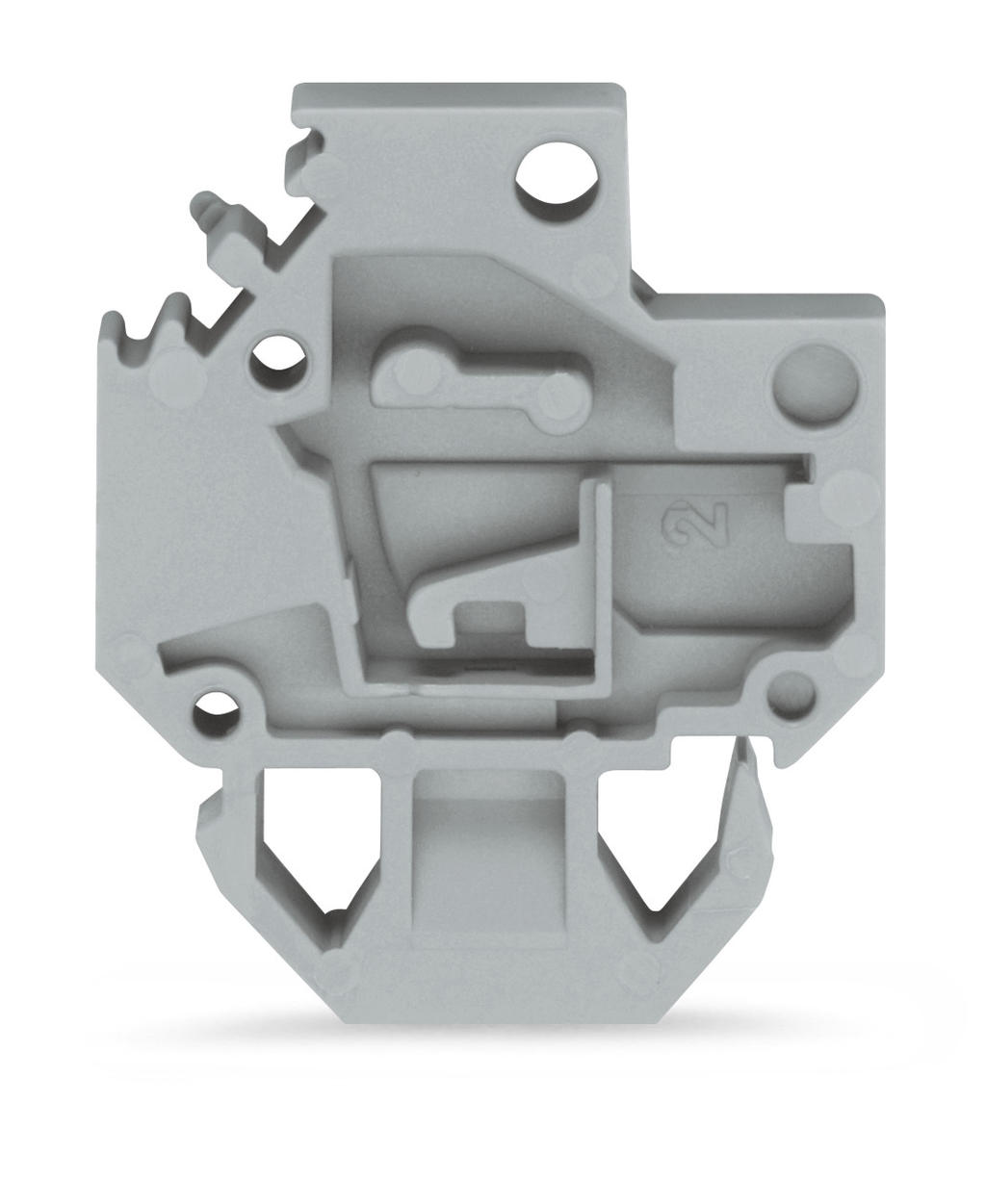

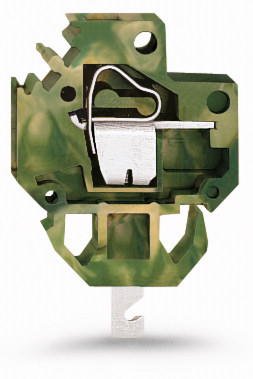

Actuation type | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | Operating tool | | | Operating tool | Operating tool | Operating tool | Operating tool | | |
Clamping spring material | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | | | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | Chrome nickel spring steel (CrNi) | | |
Color | gray | gray | gray | gray | green-yellow | green-yellow | gray | gray | gray | gray | gray | gray | gray | gray |
Connection technology | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | | | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | CAGE CLAMP® | | |
Connection technology 2 | Solder contact | Wire-wrap pin | Contact pin | Solder contact | Solder contact | | | | Solder contact | Wire-wrap pin | Contact pin | Solder contact | | |
Connection technology 3 | Quick connect contact | | | Quick connect contact | Quick connect contact | | | | Quick connect contact | | | Quick connect contact | | |
Contact material | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | | | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | Electrolytic copper (Ecu) | | |
Contact plating | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | tin-plated | | | tin-plated | tin-plated | tin-plated | tin-plated | | |
Страна происхождения | DE | DE | DE | DE | DE | | DE | DE | DE | DE | DE | DE | DE | DE |
Depth | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch | 26 mm / 1.024 inch |
Design | | | | | | | | long | | | | | | short |
Direct ground contact to DIN-rail/drilled hole/housing | | | | | | 1 | | | | | | | | |
Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | | | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | | |
Fine-stranded conductor with ferrule with plastic collar | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | | | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | | |
Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | | | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | 0.25 … 2.5 mm² | | |
Fire load, MJ | 0.054 | | 0.055 | 0.054 | 0.055 | 0.055 | 0.066 | 0.028 | 0.054 | | 0.055 | 0.054 | 0.065 | 0.026 |
Flammability class per UL94 | V0 | V0 | V0 | V0 | V0 | V0 | | | V0 | V0 | V0 | V0 | | |
Global Trade Item Number (GTIN) | 4044918794350 | 4045454071677 | 4044918794367 | 4044918794374 | 4044918794398 | 4017332107075 | 4017332107082 | 4017332107099 | 4044918794428 | 4045454069186 | 4044918794435 | 4044918794442 | 4017332107143 | 4017332107150 |
Gehäuseblechstärke | 1.5 … 1.5 mm / 0.059 … 0.059 inch | 1.5 … 1.5 mm / 0.059 … 0.059 inch | 1.5 … 1.5 mm / 0.059 … 0.059 inch | 1.5 … 1.5 mm / 0.059 … 0.059 inch | 1.5 … 1.5 mm / 0.059 … 0.059 inch | 1.5 … 1.5 mm / 0.059 … 0.059 inch | 1.5 … 1.5 mm / 0.059 … 0.059 inch | | 2.5 … 2.5 mm / 0.098 … 0.098 inch | 2.5 … 2.5 mm / 0.098 … 0.098 inch | 2.5 … 2.5 mm / 0.098 … 0.098 inch | 2.5 … 2.5 mm / 0.098 … 0.098 inch | 2.5 … 2.5 mm / 0.098 … 0.098 inch | |
Ground function | | | | | mit PE-Durchführung | with direct GND contact | | | | | | | | |
Height | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 38.5 mm / 1.516 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch |
Height from the surface | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | | | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | 22 mm / 0.866 inch | | |
Insulating material | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | | | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | Polyamide 66 (PA 66) | | |
Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | | | | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | (III / 2) ≙ Overvoltage category III / Pollution degree 2 | | |
Limit temperature range | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | | | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | -60 … +105 °C | | |
Material group | I | I | I | I | I | I | | | I | I | I | I | | |
Mounting type | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | Snap-in mounting foot | |
Number of Poles | 1 | 1 | 1 | 1 | 1 | 1 | | | 1 | 1 | 1 | 1 | | |
Number of connection points | 1 | 1 | 1 | 1 | 1 | 1 | | | 1 | 1 | 1 | 1 | | |
Number of connection points (connection type) | 1 | 1 | 1 | 1 | 1 | 1 | | | 1 | 1 | 1 | 1 | | |
Number of connection types | 2 | 2 | 2 | 2 | 2 | 1 | | | 2 | 2 | 2 | 2 | | |
Number of levels | 1 | 1 | 1 | 1 | 1 | 1 | | | 1 | 1 | 1 | 1 | | |
Packaging type | | bag | bag | bag | bag | | | | bag | bag | bag | bag | | |
Pin spacing | 6 mm (0.236 inch) | 6 mm (0.236 inch) | 6 mm (0.236 inch) | 6 mm (0.236 inch) | 6 mm (0.236 inch) | 6 mm (0.236 inch) | | | 6 mm (0.236 inch) | 6 mm (0.236 inch) | 6 mm (0.236 inch) | 6 mm (0.236 inch) | | |
Product Group | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) | 4 (Printed Circuit) |
Rated current, A | 20 | 4 | 4 | 20 | 20 | | | | 20 | 4 | 4 | 20 | | |
Rated current (2), A | 6 | | | 6 | 6 | | | | 6 | | | 6 | | |
Rated impulse voltage (II / 2), kV | 4 | 4 | 4 | 4 | 4 | | | | 4 | 4 | 4 | 4 | | |
Rated impulse voltage (III / 2), kV | 4 | 4 | 4 | 4 | 4 | | | | 4 | 4 | 4 | 4 | | |
Rated impulse voltage (III / 3), kV | 4 | 4 | 4 | 4 | 4 | | | | 4 | 4 | 4 | 4 | | |
Rated voltage (II / 2), V | 630 | 630 | 630 | 630 | 630 | | | | 630 | 630 | 630 | 630 | | |
Rated voltage (III / 2), V | 320 | 320 | 320 | 320 | 630 | | | | 320 | 320 | 320 | 320 | | |
Rated voltage (III / 3), V | 320 | 320 | 320 | 320 | 320 | | | | 320 | 320 | 320 | 320 | | |
Ratings note | Solder contact | Wire-wrap pin | Contact pin | Solder contact | Solder contact | | | | Solder contact | Wire-wrap pin | Contact pin | Solder contact | | |
Ratings note 2 | Quick connect contact | | | Quick connect contact | Quick connect contact | | | | Quick connect contact | | | Quick connect contact | | |
Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | | | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | 0.08 … 4 mm² / 28 … 12 AWG | | |
Strip length | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | | | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | 9 … 10 mm / 0.35 … 0.39 Inch | | |
Total number of connection points | 1 | 1 | 1 | 1 | 1 | 1 | | | 1 | 1 | 1 | 1 | | |
Total number of potentials | 1 | 1 | 1 | 1 | 1 | 1 | | | 1 | 1 | 1 | 1 | | |
Type of mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | | Feed-through mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | Feed-through mounting | |
Weight, g | 3.429 | 3.407 | 3.487 | 3.609 | 4.107 | 3.649 | 2.2 | 0.94 | 3.426 | 3.404 | 3.484 | 3.606 | 2.178 | 0.86 |
Width | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 1.5 mm / 0.059 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 6 mm / 0.236 inch | 1.5 mm / 0.059 inch |
