Datasheet BB153 - NXP DIODE, VARICAP, SOD323 — Datenblatt

Detaillierte Beschreibung

Manufacturer: NXP

Description: DIODE, VARICAP, SOD323

Specifications:

• Alternate Case Style: SC-76
• Capacitance Cd @ Vr Max: 2.75 pF
• Capacitance Cd @ Vr Min: 42.35 pF
• Capacitance Cd @ Vr Typ: 2.6 pF
• Capacitance Cd Max @ Vr F: 2.75 pF
• Capacitance Change Ratio Min: 13.5
• Capacitance Ratio Min Cvr1/Cvr2: 15
• Cd Min Measurement Voltage Vr: 28 V
• Current Ir Max: 10 nA
• Device Marking: PC
• Diode Series Resistance Rs: 0.8 Ohm
• Diode Type: Variable Capacitance
• Forward Current If(AV): 20 mA
• Mounting Type: SMD
• Number of Pins: 2
• Operating Temperature Range: -55°C to +125°C

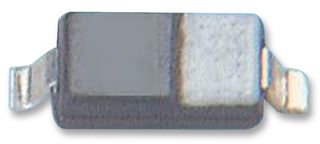

• Package / Case: SOD-323
• Peak Forward Current: 20 mA
• Pin Configuration: Band denotes cathode
• Repetitive Reverse Voltage Vrrm Max: 35 V
• Reverse Voltage Vr Max: 32 V
• Reverse Voltage Vr1: 32 V
• Reverse Voltage Vr2: 32 V
• SVHC: No SVHC (18-Jun-2010)
• Vr Cd Measurement Voltage Max: 1 V
• Vr Ir Measurement Voltage: 30 V

RoHS: Yes
